Modular Roof Rack Build Plan (Ducato, Boxer, Relay)

Modular Roof Rack Build Plan (Ducato, Boxer, Relay)

Regular price £28.00
Regular price Sale price £28.00
Sale Sold out
Taxes included.

This build plan contains the dimensions and parts required for our modular roof rack. This provides the outer rack and then you can configure it to your requirements by adding cross beams to house items such as a variety of solar panel arrangements or platforms for mounting items such as the Starlink etc.

The parts list also contains links to suppliers/products that we have used at the time of publishing. (As the links go to other sites we cannot guarantee that links will all remain valid/active).

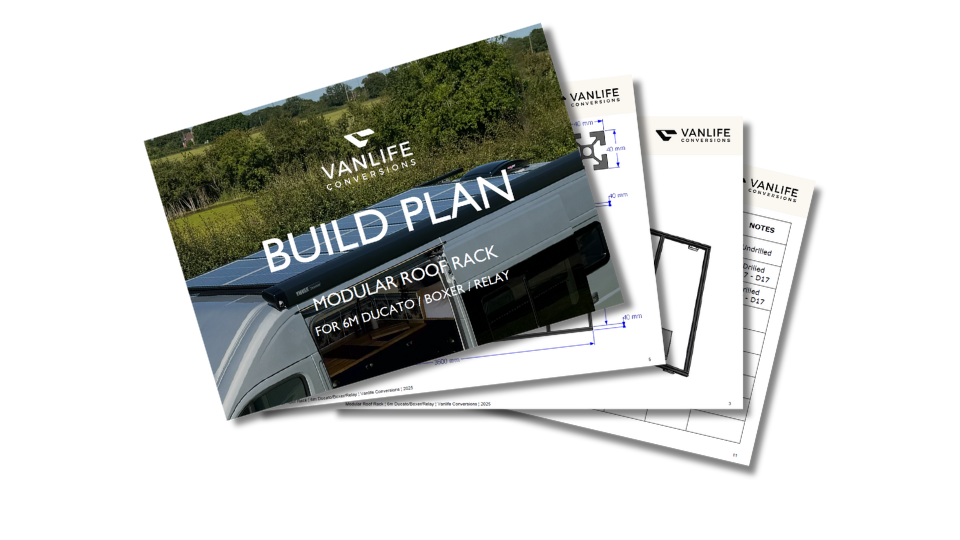

This build plan contains:

Modular Roof Rack Base Structure

  • Schematic with dimensions
  • Parts list

Worked Configuration Example Based on 1 x 540w Solar Panel

  • Schematic with dimensions
  • Parts list



This is a schematic including dimensions and a parts list of how we build the modular roof rack. It is not a step-by-step guide. These plans are for the Fiat Ducato, Citroen Relay or Peugeot Boxer L3H2. They may need to be amended slightly to fit other van models and sizes.

Unfortunately, we are unable to provide any further consultancy.




The information contained in this schematic is for illustrative purposes only and is not intended to be used as a substitute for professional advice. We do not guarantee the accuracy, completeness, or suitability of this schematic for any purpose. We shall not be liable for any damages, harm or costs arising from the use of this schematic.

The contents of this document are subject to copyright and are not for resale or republication.
