Kunu - Off-Side Wheel Arch Box Build Plan (Ducato, Boxer, Relay)

Are you planning to box in the wheel arch with storage? Our detailed build plans can help you reduce thinking time and costly mistakes. The nesting plan also helps save money by getting the most out of each sheet of wood.

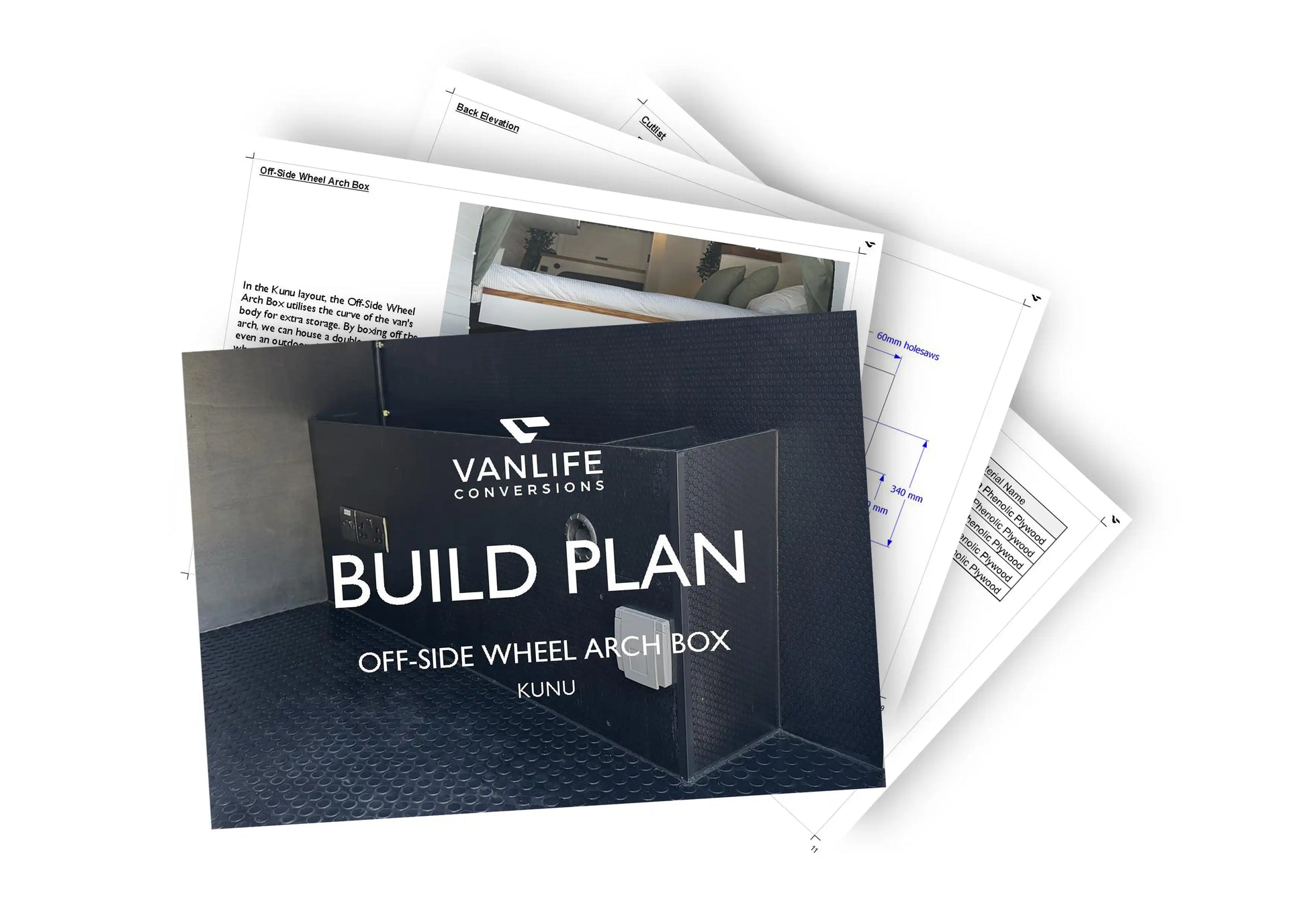

Based on the wheelbox unit in our popular Kunu layout which fits over the off-side wheel arch, this build plan contains the following in a PDF format:

Off-Side Wheelbox Unit

• Schematic with dimensions
• Cutting list
• Nesting plan

This is a schematic including dimensions and a cut list. It is not a step-by-step guide. These plans are based on a Fiat Ducato, Citroen Relay or Peugeot Boxer L3H2. They may need to be amended slightly to fit other van models and sizes.

Unfortunately, we are unable to provide any further consultancy.

The information contained in this schematic is for illustrative purposes only and is not intended to be used as a substitute for professional advice. We do not guarantee the accuracy, completeness, or suitability of this schematic for any purpose. We shall not be liable for any damages, harm or costs arising from the use of this schematic.

The contents of this document are subject to copyright and are not for resale or republication.
