Are you planning to build your own van based on the Kunu layout?
Our detailed layout blueprint and lining build plans can help reduce thinking time and costly mistakes. Buy a bundle of the layout plan and our build plans showing schematics with dimensions and a cut list for each. Saves 60%!
Based on our Kunu layout, this set of plans contains the following in a PDF format:
Kunu Layout plan
Kunu lining build plans with cut lists for the following:

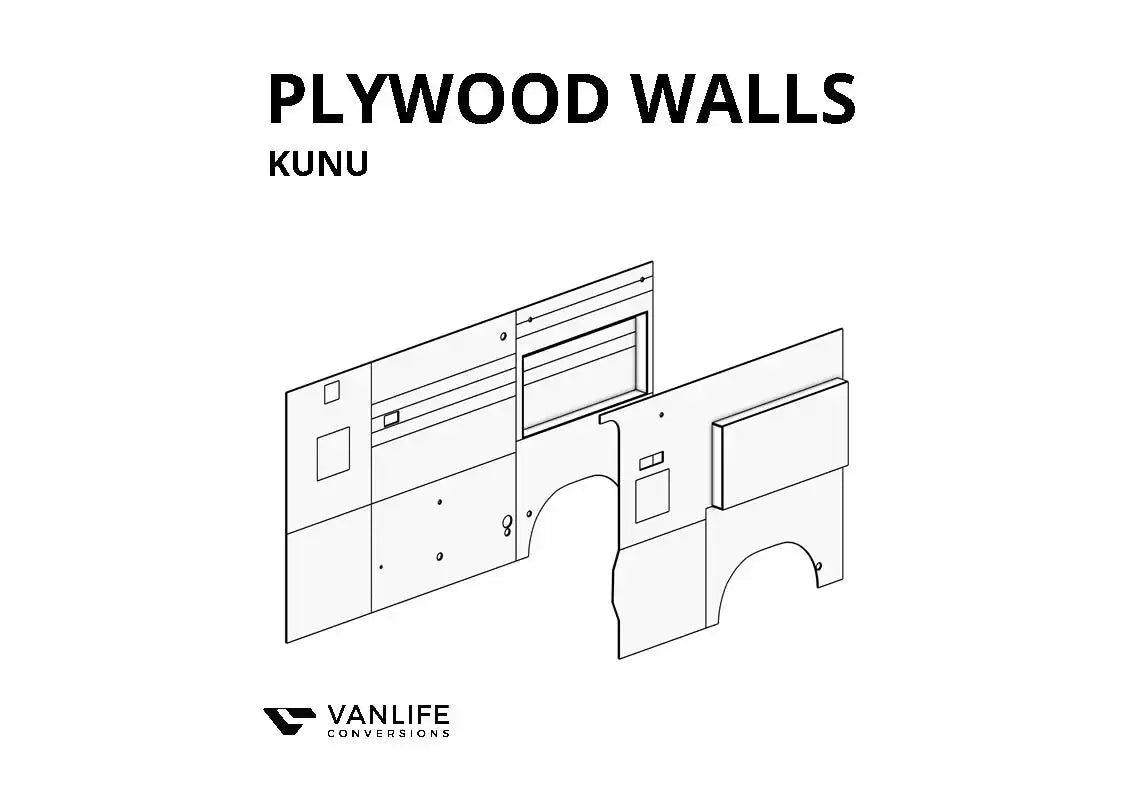

Walls

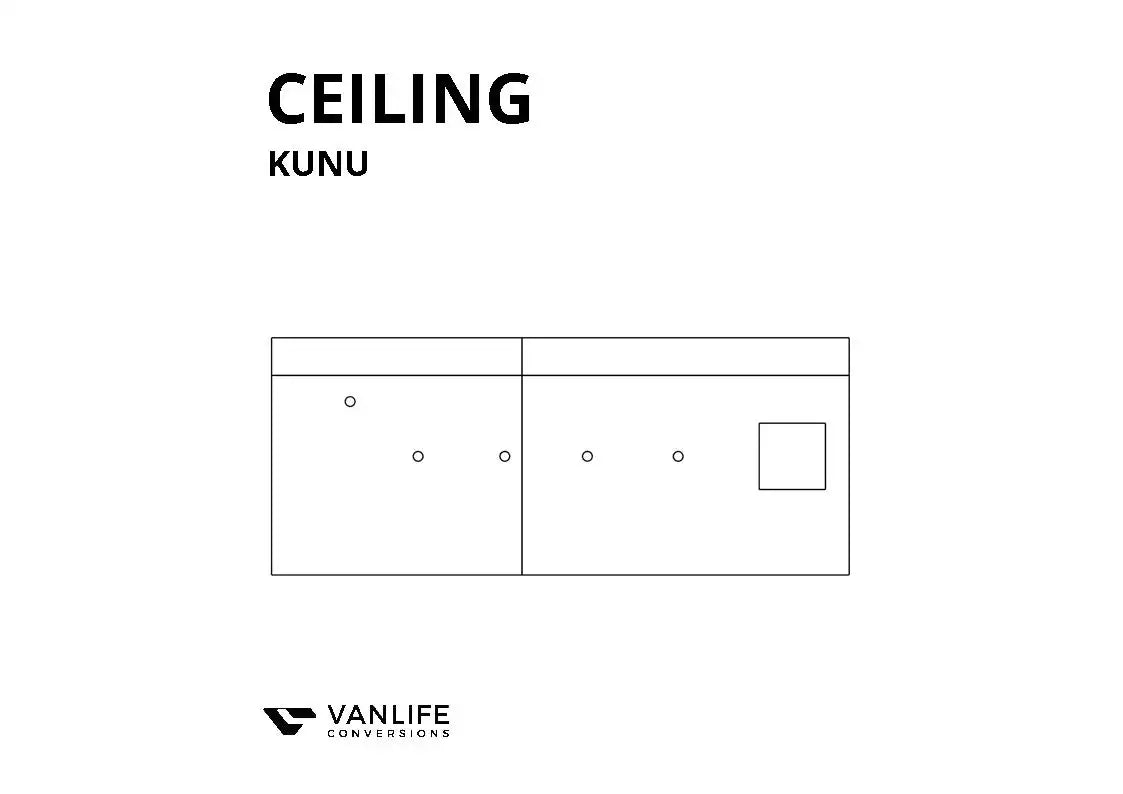

Ceiling and slats

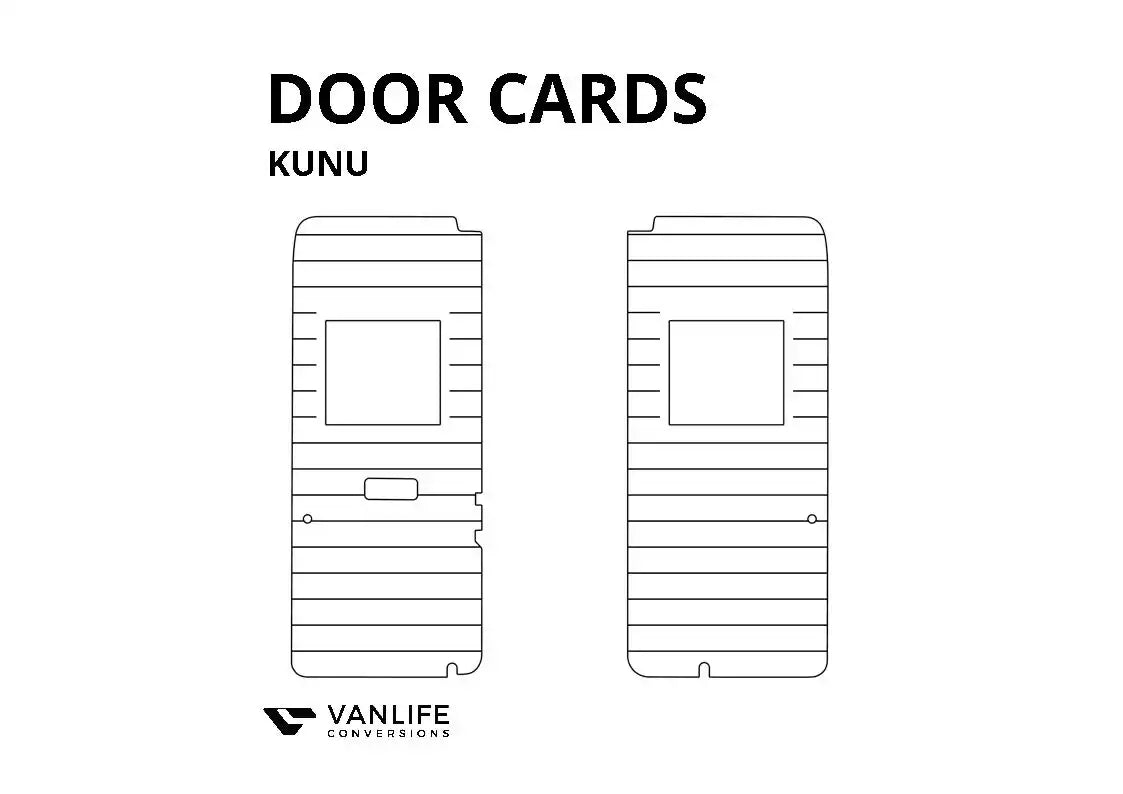

Doors (rear & sliding)

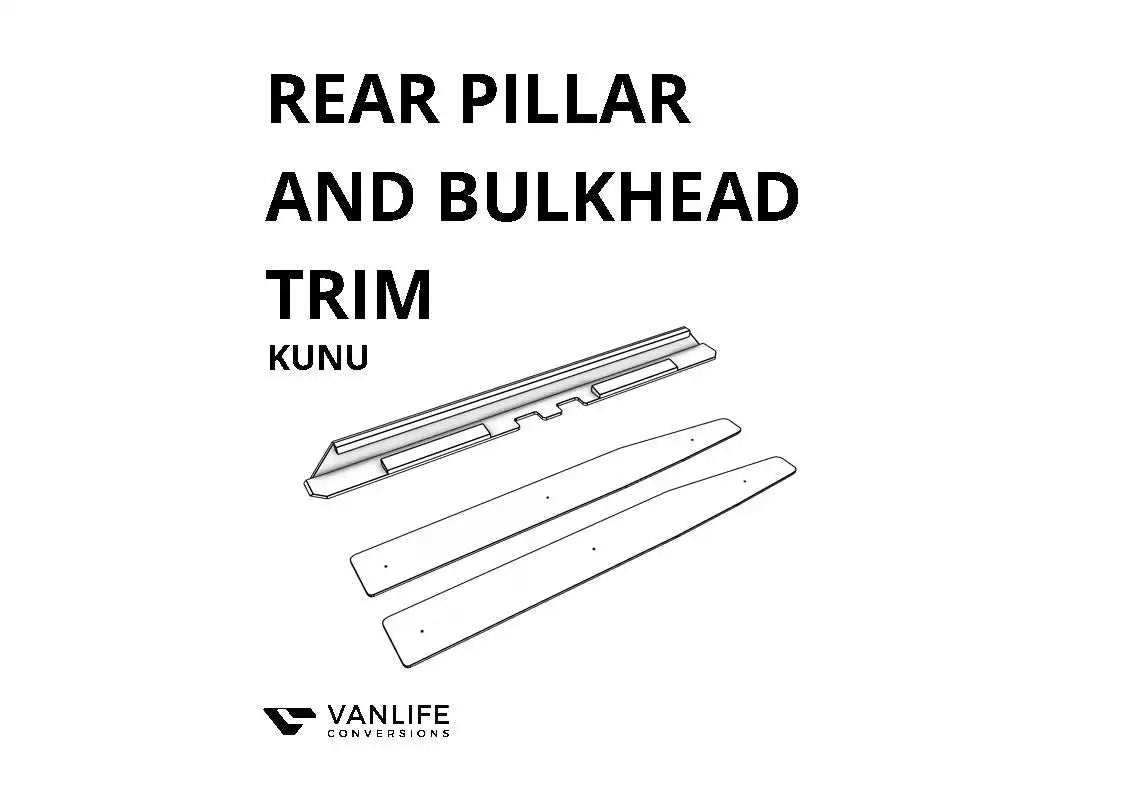

Bulkhead trim & rear pillar trims
This schematic includes dimensions and a cut list of how we line our vans. It is not a step-by-step guide. These plans are based on a Fiat Ducato, Citroen Relay or Peugeot Boxer L3H2. They may need to be amended slightly to fit other van models and sizes.
Unfortunately, we are unable to provide any further consultancy. The information contained in this schematic is for illustrative purposes only and is not intended to be used as a substitute for professional advice. We do not guarantee the accuracy, completeness, or suitability of this schematic for any purpose. We shall not be liable for any damages, harm or costs arising from the use of this schematic. The contents of this document are subject to copyright and are not for resale or republication.
