Kunu Layout Plan (Ducato, Boxer, Relay)

Are you planning to build your own van? Our detailed build plans can help you to reduce thinking time and costly mistakes.

Based on the Kunu layout, this build plan contains the following in a PDF format:

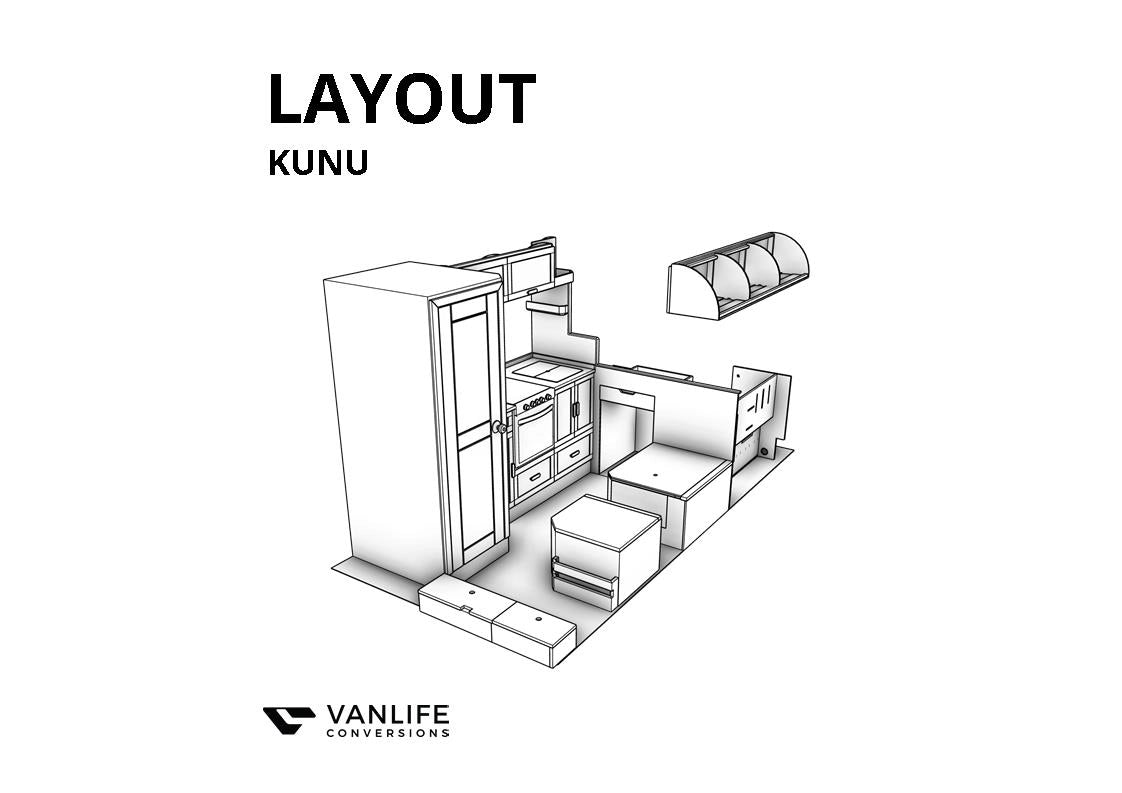

Layout Plan

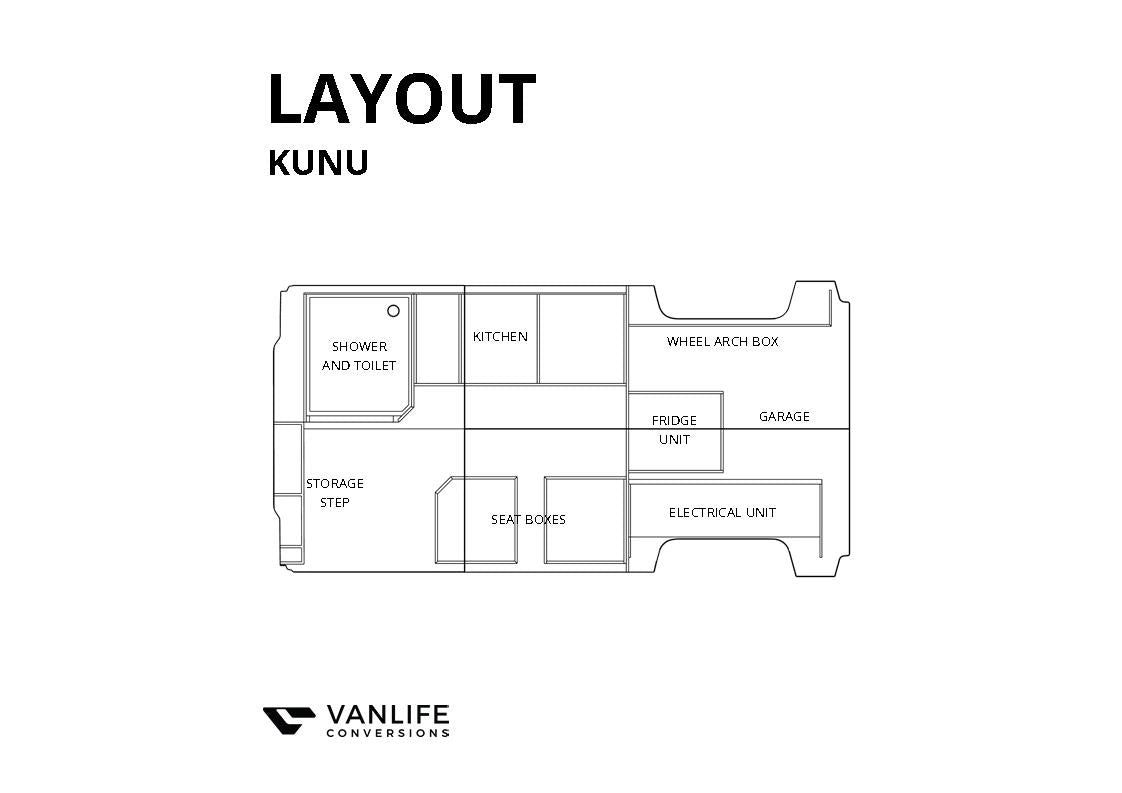

• Floorplan overview
• Lower level plan with dimensions
• Upper level plan with dimensions
• Side elevations with dimensions

This is a schematic including dimensions of our Kunu layout. It is not a step-by-step guide. These plans are based on a Fiat Ducato, Citroen Relay or Peugeot Boxer L3H2. They may need to be amended slightly to fit other van models and sizes.

Unfortunately, we are unable to provide any further consultancy.

The information contained in this schematic is for illustrative purposes only and is not intended to be used as a substitute for professional advice. We do not guarantee the accuracy, completeness, or suitability of this schematic for any purpose. We shall not be liable for any damages, harm or costs arising from the use of this schematic.

The contents of this document are subject to copyright and are not for resale or republication.
